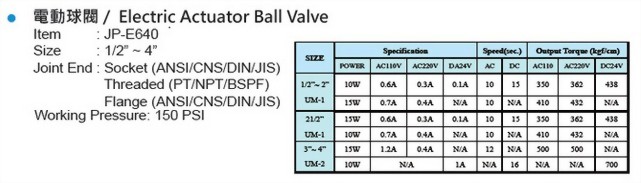

13-09-05- Electric Actuator True Union Ball Valves
ITEM NO: SL-E640
Material: PVC, CPVC, PP

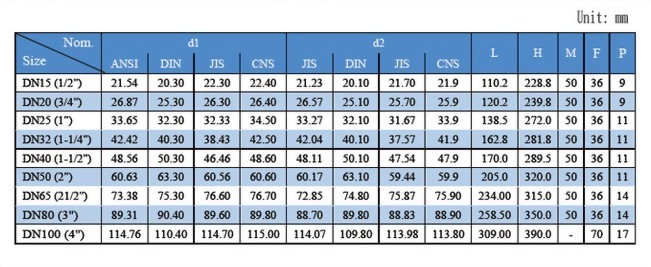

Size: 1/2\'\' - 4\'\'; 20mm - 110mm; DN15 - DN100
Standard: ANSI, DIN, JIS
Joint End: Socket, Threaded(NPT, PT, BSPF), Fusion, Welding
Working Pressure: 150 PSI
Operating Temperature: PVC(0~55℃); CPVC & PP(0~95℃)
Valve body color : PVC(dark gray), CPVC(light gray), PP(light yellow)
ADVANTAGES
1. Plastic actuator body pass impaction & acid-base tests, also meets SGS
2. Valve position can be adjusted from 15 degree to 90 degree
3. Assembly of actuators and valves meets EN ISO 5211 standard
4. 100% pure virgin material, CaCO3 free (Chalk)
5. Valve body is added in UV resistant powder
6. 100% performance testing before leaving the factory
7. Can be assembled with Pneumatic Actuators as well
